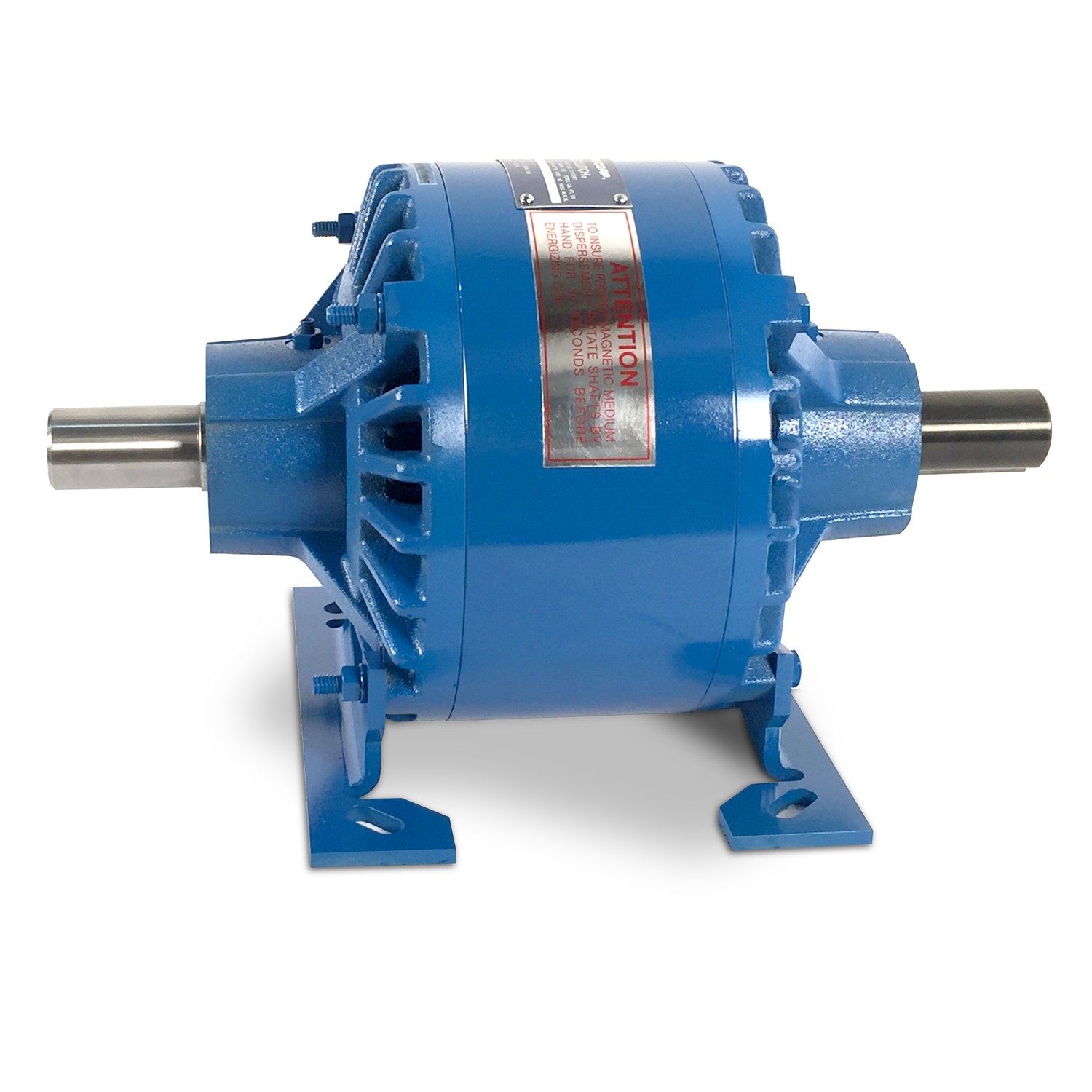

MagneClutch 100MC90B20 Image
  • MagneClutch 100MC90B20 Image
  • MagneClutch 100MC90B20 Image 2
  • MagneClutch 100MC90B20 Image 3
  • MagneClutch 100MC90B20 Forced Air Housing Image
  • MagneClutch 100MC90B20 Forced Air Housing Image 2

100 lb. ft. MagneClutch (100MC*90B20)

SEE TABS BELOW FOR SPECS & RESOURCES

Available Cooling Types.

  • Model 100MC90B20 convection cooled.
  • Model 100MCA90B20 forced air cooled.
  • Model 100MCW90B20 water cooled.

Adaptability.

  • 90 Volt. Available in other voltages to order.
  • Simpler handling & mounting.
  • Flexible installations.
  • Broad application range.

Extra Power Handling Capacity.

  • Largest slipway capacity.
  • High inertia acceleration.
  • Economical industrial cycling control.
  • Material conveyor soft-start, stop.
  • Handle over 25 hp.

Effective Performance & Design.

  • Low system inertia.
  • Faster cycles & response.
  • Excellent for torque testing.
  • Large slip watt capacity.
  • Precise end shield diameter for saddle-mount & other use.
  • Removeable feet.

Repair Service Request Form

Available Cooling Types.

  • Model 100MC90B20 convection cooled.
  • Model 100MCA90B20 forced air cooled.
  • Model 100MCW90B20 water cooled.

Adaptability.

  • 90 Volt. Available in other voltages to order.
  • Simpler handling & mounting.
  • Flexible installations.
  • Broad application range.

Extra Power Handling Capacity.

  • Largest slipway capacity.
  • High inertia acceleration.
  • Economical industrial cycling control.
  • Material conveyor soft-start, stop.
  • Handle over 25 hp.

Effective Performance & Design.

  • Low system inertia.
  • Faster cycles & response.
  • Excellent for torque testing.
  • Large slip watt capacity.
  • Precise end shield diameter for saddle-mount & other use.
  • Removeable feet.
100MC(W)90B20 / 100MCA90B20

Data sheet

Model
100MC90B20 / 100MCA90B20 / 100MCW90B20
Rated Torque (lb.-ft.)
100
Mounting
Base
Type Of Cooling
Convection (CV) / Forced Air (FA) / Water (W)
Heat Dissipation at 1800 RPM (Watts) (5)
1100 (CV) / 1700 (FA) / 4500 (W)
Max Oper. Speed (RPM) (6)
3600
Non-Excited Drag Torque (lb.-ft.)
1.0 (CA) / 1.0 (FA) / 1.5 (W)
Inertia (WK (2)) Rotating Member (lb.-ft. (2)) x 10(-2) - OUTER
68.0
Inertia (WK (2)) Rotating Member (lb.-ft. (2)) x 10(-2) - INNER
46.0
Wgt. Approx (lbs.)
98 (CA) / 110 (FA) / 98 (W)
Coil Data (Input 90VDC) - CURRENT AMPERES (4)
1.0
Coil Data (Input 90VDC) - RESISTANCE OHMS @ 20 C
68
Note (4)
Coils for other voltages wound to order
Note (5)
The data given represents the average, continuous dissipation capacity of units operating under slip conditions
Note (6)
Applications requiring continuous operation below 30 RPM should be referred to factory for evaluation

Download

**MC***B20 Installation & Maint.

10MC***B20 / 10MC***F20 / 50MC***B20 / 50MC***F20 / 100MC***B20 / 100MC***F20 / Installation & Maintenance Manual

Download (365.46k)



100MC90B20 Spec. Drawing

100MC90B20 Engineering Drawing 2941013

Download (822.81k)



100MCA90B20 Spec. Drawing

100MCA90B20 Engineering Drawing 2940648

Download (1.22M)



100MC*90*20 Service Parts Info.

100MC*90*20 Service Parts Information Manual

Download (1.63M)
