Multiple Options.

  • 90 Volt. Available in other voltages to order.
  • Choice of torque ratings.
  • Water or forced air cooled.

Small Size & Weight.

  • Size tailored to application.
  • Simpler handling & mounting.

Efficient Configuration.

  • Base-mount unit may be used as jack shaft.
  • Received ready to use.
  • Direct coupling to drive or load.

Flexibility.

  • Use as brake or clutch in reeling applications.
  • Wind-unwind tension control.
  • Adapts to production fixtures.
  • Soft acceleration control for delicate materials.

5 lb. ft. MagneClutch (5MC90B)

SEE TABS BELOW FOR SPECS & RESOURCES

Available Cooling Types.

  • Model 5MB90S convection cooled.
  • Model 5MBA90S forced air cooled.

Small Size & Weight.

  • 90 Volt. Available in other voltages to order.
  • Simpler handling & mounting.
  • Flexible installation.

Large Power Handling Capacity.

  • Absorbs more slip.
  • Low cost, high capability.
  • Machinery upgrading tool.

Direct Shaft Mounting.

  • Space savings.
  • Convenient assembly & service.
  • Compatible with other brakes.

Fast Response.

  • Rapid stopping.
  • Precise control.
  • Combines with Magneclutch for stop-go cycling.

Low Cost.

  • Lowest priced Magneclutch.
  • Near-unlimited braking life.
  • Available torque arm TAB5.
  • Available life-extension kit.

5 lb. ft. MagneBrake (5MB*90S)

SEE TABS BELOW FOR SPECS & RESOURCES

Available Cooling Types.

  • Model 7MC90C convection cooled.
  • Model 7MCA90C forced air cooled.

Multiple Options.

  • 90 Volt. Available in other voltages to order.
  • Choice of torque ratings.
  • Water or forced air cooled.

Small Size & Weight.

  • Size tailored to application.
  • Simpler handling & mounting.

Efficient Configuration.

  • C-Face mounting unit.
  • Received ready to use.
  • Direct coupling to drive or load.

Flexibility.

  • Use as brake or clutch in reeling applications.
  • Wind-unwind tension control.
  • Adapts to production fixtures.
  • Soft acceleration control for delicate materials.

7 lb. ft. MagneClutch (7MC*90C)

SEE TABS BELOW FOR SPECS & RESOURCES

Available Cooling Types.

  • Model 10MC90B20 convection cooled.
  • Model 10MCA90B20 forced air cooled.
  • Model 10MCW90B20 water cooled.

Small Weight & Size.

  • 90 Volt. Available in other voltages to order.
  • Simpler handling & mounting.
  • Flexible installations.
  • Adaptability.

High Power Capacity.

  • High slip loads.
  • High inertia acceleration.
  • Economical cycling control.
  • Soft-start, stop.

Maximum Effectiveness.

  • Fast cycle & response.
  • Low inertia.
  • Precise end shield diameter for saddle-mounting & other use.
  • Removeable feet.

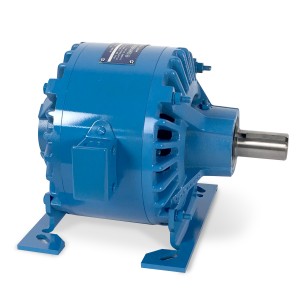

10 lb. ft. MagneClutch (10MC*90B20)

SEE TABS BELOW FOR SPECS & RESOURCES

Available Cooling Types.

  • Model 10MC90F20 convection cooled.
  • Model 10MCA90F20 forced air cooled.

Variable Speed.

  • Conveyor drives, traction drives, hoists, centrifuges, material handling.
  • 1 to 15 hp.
  • 0 to full speed.
  • Quiet, unlimited life.

Compact.

  • Eliminates alignment problems.
  • Eliminates space wasting coupling.
  • Unobtrusive machine addition.
  • Blends operationally with equipment.

Maximum Effectiveness.

  • 90 Volt. Available in other voltages to order.
  • Fits NEMA 143T, 145T Motors.
  • Mounts directly to motor.
  • Simple installation.

10 lb. ft. MagneClutch (10MC*90F20)

SEE TABS BELOW FOR SPECS & RESOURCES

Available Cooling Types.

  • Model 10MB90B20 convection cooled.
  • Model 10MBA90B20 forced air cooled.
  • Model 10MBW90B20 water cooled.
  • 90 Volt. Available in other voltages to order.

Small Size & Weight.

  • Simpler handling & mounting.
  • Flexible installation.

Large Power Handling Capacity.

  • Absorbs more slip.
  • Low cost, high capability.
  • Large roll braking capacity.
  • Economical cycling control.

Base Mounting.

  • Space savings.
  • Better equipment adaptability.
  • More compact economical installations.
  • Precise mounting diameter for exact equipment matchup.

Fast Response.

  • Rapid stopping.
  • Precise control.
  • Controlled stopping for long conveyors.

10 lb. ft. MagneBrake (10MB*90B20)

SEE TABS BELOW FOR SPECS & RESOURCES

Available Cooling Types.

  • Model 25MB90S convection cooled.
  • Model 25MBA90S forced air cooled.

Wide Industry Use.

  • Printing, Machine tools, Plastic film, Wire & more.
  • Increasing use in all tension control areas.

Proven Performance.

  • Countless applications.
  • Success in tough industrial environments.

Convenience.

  • 90 Volt. Available in other voltages to order.
  • Simple shaft mounting.
  • Unique flange for oversized shaft.
  • Compact, easy to install,
  • Easily serviceable.

Fast Response.

  • Rapid stopping.
  • Precise Control.
  • Combines with Magneclutch for stop-go cycling.

Economical.

  • Near-unlimited braking life.
  • Inexpensive life-extension kit.

25 lb. ft. MagneBrake (25MB*90S)

SEE TABS BELOW FOR SPECS & RESOURCES

Available Cooling Types.

  • Model 25MB90C convection cooled.
  • Model 25MBA90C forced air cooled.
  • 90 Volt. Available in other voltages to order.

Wide Industry Use.

  • Printing, Machine tools, Plastic film, Wire & more.
  • Increasing use in all tension control areas.

Proven Performance.

  • NEMA-C Face.
  • Countless applications.
  • Success in tough industrial environments.

Convenience.

  • Simple shaft mounting.
  • Unique flange for oversized shaft.
  • Compact, easy to install,
  • Easily serviceable.

Fast Response.

  • Rapid stopping.
  • Precise Control.
  • Combines with Magneclutch for stop-go cycling.

Economical.

  • Near-unlimited braking life.
  • Inexpensive life-extension kit.

25 lb. ft. MagneBrake (25MB*90C)

SEE TABS BELOW FOR SPECS & RESOURCES

Available Cooling Types.

  • Model 50MC90B20 convection cooled.
  • Model 50MCA90B20 forced air cooled.
  • Model 50MCW90B20 water cooled.

Small Weight & Size.

  • Simpler handling & mounting.
  • Flexible installations.
  • Adaptability.

Extra Power Handling Capacity.

  • 90 Volt. Available in other voltages to order.
  • High slip loads.
  • High inertia acceleration.
  • Economical industrial cycling control.
  • Material conveyor soft-start, stop.
  • Handle over 25 hp.

Effective Performance & Design.

  • Low system inertia.
  • Faster cycles & response.
  • Excellento for torque testing.
  • Large slip watt capacity.
  • Precise end shield diameter for saddle-mount & other use.
  • Removeable feet.
  • Broader application range.

50 lb. ft. MagneClutch (50MC*90B20)

SEE TABS BELOW FOR SPECS & RESOURCES

Available Cooling Types.

  • Model 50MC90F20 and F22 convection cooled.
  • Model 50MCA90F20 forced air cooled.

Variable Speed.

  • 90 Volt. Available in other voltages to order.
  • Conveyor drives, traction drives, hoists, centrifuges, material handling.
  • 1 to 15 hp.
  • 0 to full speed.
  • Quiet, unlimited life.

Compact.

  • Eliminates alignment problems.
  • Eliminates space wasting coupling.
  • Unobtrusive machine addition.
  • Blends operationally with equipment.

Maximum Effectiveness.

  • Fits NEMA Motors.
  • Mounts directly on NEMA 213T, 215T frame motors.
  • Adapter allows for mount on NEMA 182T, 184T frame motors.
  • Mounts directly to motor.
  • Simple installation.

50 lb. ft. MagneClutch (50MC*90F2*)

SEE TABS BELOW FOR SPECS & RESOURCES

Available Cooling Types.

  • Model 50MB90S convection cooled.
  • Model 50MBA90S forced air cooled.
  • 90 Volt. Available in other voltages to order.

Wide Industry Use.

  • Printing, Machine tools, Plastic film, Wire & more.
  • Increasing use in all tension control areas.

Proven Performance.

  • Countless applications.
  • Success in tough industrial environments.

Convenience.

  • Simple shaft mounting.
  • Unique flange for oversized shaft.
  • Compact, easy to install,
  • Easily serviceable.

Fast Response.

  • Rapid stopping.
  • Precise Control.
  • Combines with Magneclutch for stop-go cycling.

Economical.

  • Near-unlimited braking life.
  • Inexpensive life-extension kit.

50 lb. ft. MagneBrake (50MB*90S)

SEE TABS BELOW FOR SPECS & RESOURCES

Available Cooling Types.

  • Model 50MB90B20 convection cooled.
  • Model 50MBA90B20 forced air cooled.
  • Model 50MBW90B20 water cooled.

Ideal Size.

  • 90 Volt. Available in other voltages to order.
  • Heavier brake allow extra options
  • Simple base mounting.
  • More compact, economical installations.

Large Power Handling Capacity.

  • Largest slipway capacity available for ratings.
  • Ideal for unwinds and stands.
  • Automatic tension control for heavier materials. Extra large roll braking capacity.
  • Controlled and emergency stops for long conveyors.
  • Economic industrial cycling control.

Optimum Performance.

  • Low cycle inertia.
  • Faster stops and response.
  • Excellent torque testing.
  • Extra heat dissipation.
  • Extra holding capacity, faster stops.
  • Improved brake reliability.
  • Allows use of smaller more efficient motor.

50 lb. ft. MagneBrake (50MB*90B20)

SEE TABS BELOW FOR SPECS & RESOURCES

Available Cooling Types.

  • Model 75MB90S convection cooled.
  • Model 75MBA90S forced air cooled.
  • 90 Volt. Available in other voltages to order.

Superior Torque.

  • Industry's highest torque rating.
  • Up to 70% overload torque.
  • Extra stopping capacity including emergency stops.

Extra Power Handling Capacity.

  • More slipp watts for tension control.
  • Faster cycling rates.
  • Softer braking.
  • Controls higher speeds.

Best Configuration.

  • Taperlock bushings accommodate .5 - 1.625 in. shaft diameters.
  • Simple shaft mounting for convenient installation.
  • Stock torque arms.
  • Compact, space-saving.

75 lb. ft. MagneBrake (75MB*90S)

SEE TABS BELOW FOR SPECS & RESOURCES

Available Cooling Types.

  • Model 100MC90B20 convection cooled.
  • Model 100MCA90B20 forced air cooled.
  • Model 100MCW90B20 water cooled.

Adaptability.

  • 90 Volt. Available in other voltages to order.
  • Simpler handling & mounting.
  • Flexible installations.
  • Broad application range.

Extra Power Handling Capacity.

  • Largest slipway capacity.
  • High inertia acceleration.
  • Economical industrial cycling control.
  • Material conveyor soft-start, stop.
  • Handle over 25 hp.

Effective Performance & Design.

  • Low system inertia.
  • Faster cycles & response.
  • Excellent for torque testing.
  • Large slip watt capacity.
  • Precise end shield diameter for saddle-mount & other use.
  • Removeable feet.

100 lb. ft. MagneClutch (100MC*90B20)

SEE TABS BELOW FOR SPECS & RESOURCES

Available Cooling Types.

  • Model 100MC90F20 and F22 convection cooled.
  • Model 100MCA90F20 forced air cooled.

Variable Speed.

  • 90 Volt. Available in other voltages to order.
  • Conveyor drives, traction drives, hoists, centrifuges, material handling.
  • 1 to 15 hp.
  • 0 to full speed.
  • Quiet, unlimited life.

Compact.

  • Eliminates alignment problems.
  • Eliminates space wasting coupling.
  • Unobtrusive machine addition.
  • Blends operationally with equipment.

Maximum Effectiveness.

  • Fits NEMA Motors.
  • Mounts directly on NEMA 213T, 215T frame motors.
  • Mounts directly to motor.
  • Simple installation.

100 lb. ft. MagneClutch (100MC*90F2*)

SEE TABS BELOW FOR SPECS & RESOURCES

Available Cooling Types.

  • Model 100MB90B20 convection cooled.
  • Model 100MBA90B20 forced air cooled.
  • Model 100MBW90B20 water cooled.

Optimum Performance.

  • Low cycle inertia.
  • Faster stops and response.
  • Excellent torque testing.
  • Extra heat dissipation.
  • Extra holding capacity, faster stops.
  • Improved brake reliability.
  • Allows use of smaller more efficient motor.

Large Power Handling Capacity.

  • Largest slipway capacity available for ratings.
  • Ideal for unwinds and stands.
  • Automatic tension control for heavier materials. Extra large roll braking capacity.
  • Controlled and emergency stops for long conveyors.
  • Economic industrial cycling control.

Large Size.

  • Heavier brake allow extra options
  • Simple base mounting.
  • More compact, economical installations.

100 lb. ft. MagneBrake (100MB*90B20)

SEE TABS BELOW FOR SPECS & RESOURCES

Convenience.

  • Uses models 7MC90C clutch and 25MB90C brake.
  • Fits conveniently between NEMA 56 Frame C-Face Motor
  • Interchangeable with all friction brakes meeting NEMA dimensions.
  • Perfect for applications requiring unlimited cycling.
  • Excellent thermal rating for NEMA 56 frame motors.

NEMA-rated Magneclutch.

  • Ideal for most wind-up applications with appropriate power control.
  • Convenient control for constant tension on wires and webs in capstan and nip roll drives.

MagnePax Modular Clutch/Brake Combination

SEE TABS BELOW FOR SPECS & RESOURCES

Features.

  • Self contained manual torque control.
  • Adjustable torque setting from 5% to 100% with dial on unit.
  • Compact size.
  • DIN rail or panel mount.
  • LED status indicator.

Ideal For.

  • Converting machinery.
  • Web feed control.
  • Packaging machinery.
  • Tension control.

Magne Torque Control (2960918-2)
