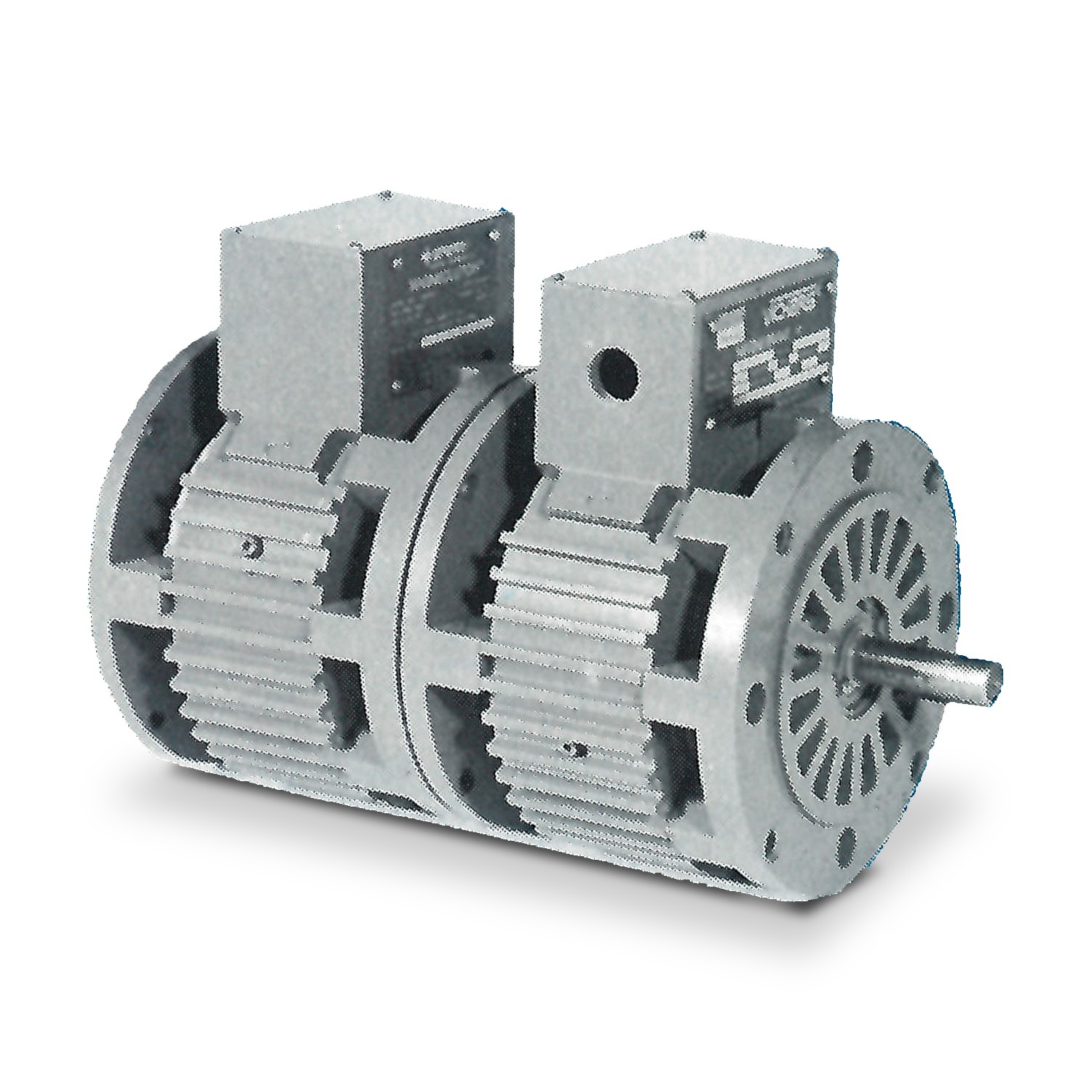

MagnePax Clutch/Brake Image
  • MagnePax Clutch/Brake Image

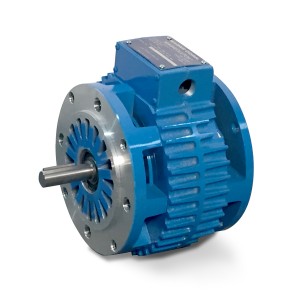

  • MagnePax Clutch/Brake Image 2

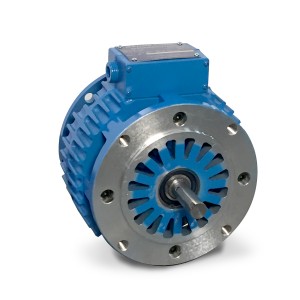

  • MagnePax Clutch/Brake Image 3

MagnePax Modular Clutch/Brake Combination

SEE TABS BELOW FOR SPECS & RESOURCES

Convenience.

  • Uses models 7MC90C clutch and 25MB90C brake.
  • Fits conveniently between NEMA 56 Frame C-Face Motor
  • Interchangeable with all friction brakes meeting NEMA dimensions.
  • Perfect for applications requiring unlimited cycling.
  • Excellent thermal rating for NEMA 56 frame motors.

NEMA-rated Magneclutch.

  • Ideal for most wind-up applications with appropriate power control.
  • Convenient control for constant tension on wires and webs in capstan and nip roll drives.

Repair Service Request Form

Convenience.

  • Uses models 7MC90C clutch and 25MB90C brake.
  • Fits conveniently between NEMA 56 Frame C-Face Motor
  • Interchangeable with all friction brakes meeting NEMA dimensions.
  • Perfect for applications requiring unlimited cycling.
  • Excellent thermal rating for NEMA 56 frame motors.

NEMA-rated Magneclutch.

  • Ideal for most wind-up applications with appropriate power control.
  • Convenient control for constant tension on wires and webs in capstan and nip roll drives.
MagnePax Clutch/Brake Combo

Data sheet

Note (1)
See Model 7MC90C Clutch for specifications
Note (2)
See Model 25MB90C Brake for specifications

Download

25MB90C Spec. Drawing

25MB90C Engineering Drawing 2940680

Download (1.2M)



7MC90C Spec. Drawing

7MC90C Engineering Drawing 2940681

Download (1.6M)



7MC9**C / 25MB**C Installation B

7MC9**C / 25MB**C / MAGNEPAX Installation & Maintenance Manual B

Download (225.58k)



7MC*C Service Parts Info.

7MC*C Service Parts Information Manual

Download (1.19M)



**MB*C Service Parts Info.

25MB*C Service Parts Information Manual

Download (730.09k)
